Bed & Stretcher Elevator for Medical Facilities
- Extra-deep stretcher car – accommodates hospital beds, stretchers and wheelchairs side by side with medical staff
- Hygienic stainless-steel interior – smooth, non-porous surfaces that are quick to wipe down and disinfect
- Accessible control panel – braille buttons, wheelchair-height layout, alarm button and door open/close controls as standard
- Whisper-quiet, smooth ride – VVVF gearless drive and levelling accuracy for patient comfort during transport
- Safety-first operation – emergency intercom, automatic rescue device, door sensors and anti-pinch protection
- Reliable around the clock – heavy-duty components rated for continuous hospital traffic
levator is tailor-made for medical facilities. Boasting a large cabin and quiet operation, it safely transports patients, beds, stretchers and wheelchairs.
It comes with wheelchair-friendly control panel with braille, alarm and door buttons. The easy-to-clean stainless steel, antibacterial handrails and half-speed door reopening device fully satisfy hospital usage requirements.
Section & Specifications
| Model | On request (customized to your project) |
| Rated Load | 1000kg (13 persons) / 1600kg (21 persons) – typical hospital configurations |
| Speed | 1.0 / 1.6 / 1.75 m/s |
| Drive System | VVVF gearless traction machine, energy-saving |
| Control System | Simplex full collective / group control with priority service for bed transport |
| Door Operator | Wide centre-opening doors (900–1100mm) with DC/AC VVVF operator |

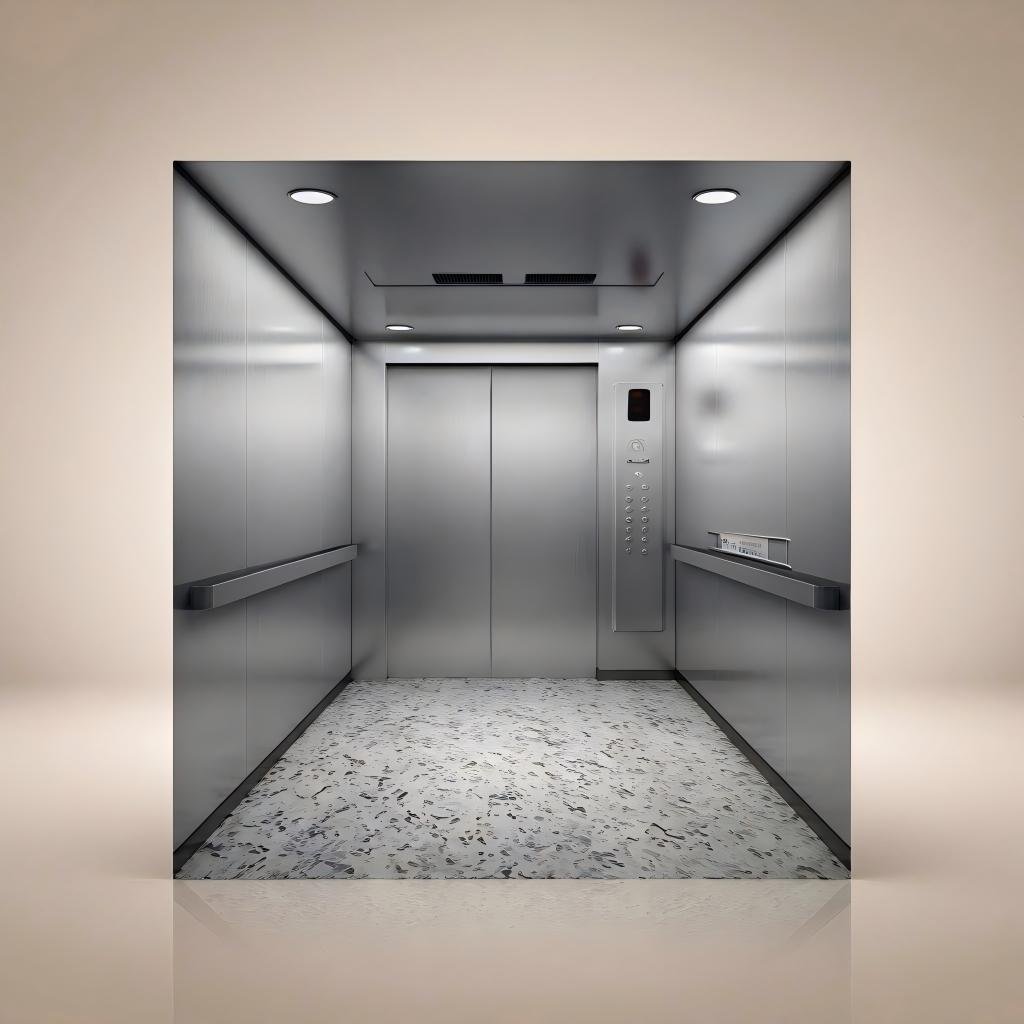

| Car Finish | Hairline stainless steel walls, IV handrails both sides, marble or PVC flooring |

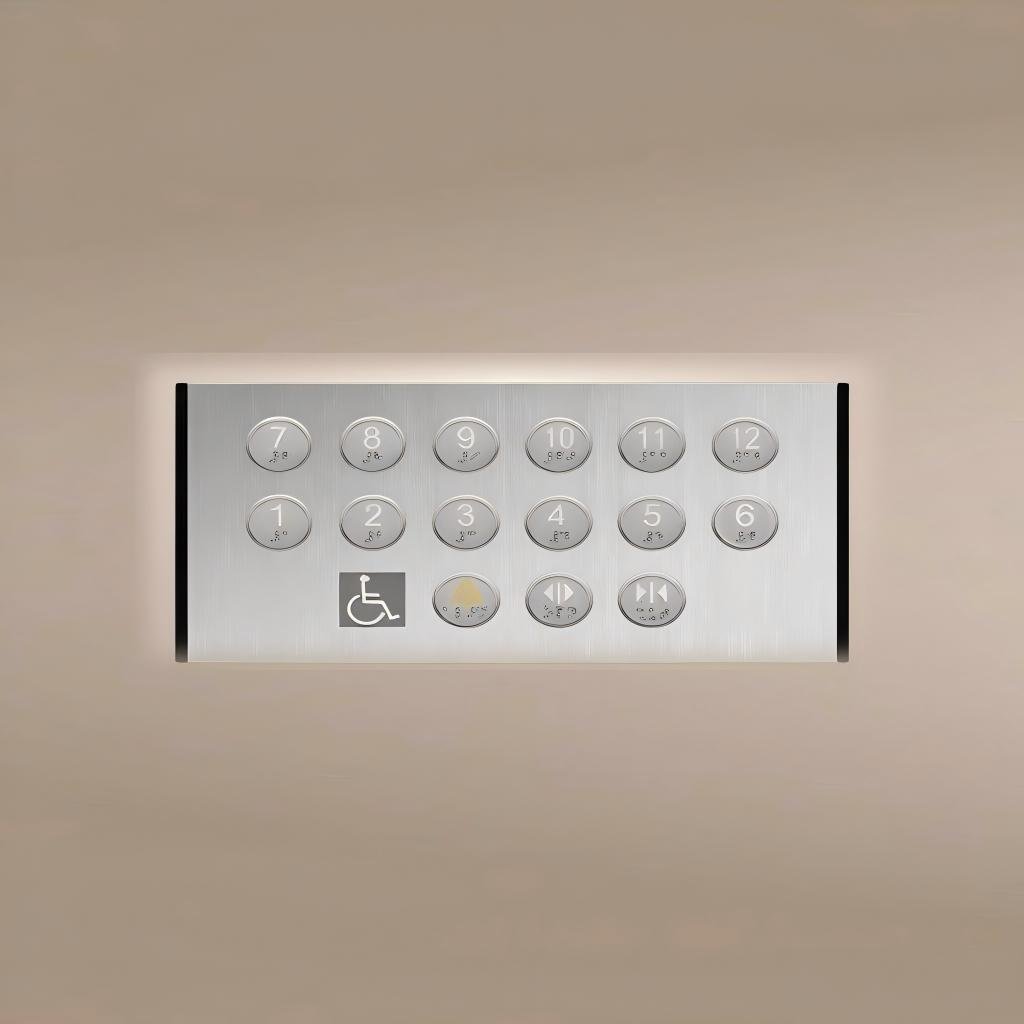

| Control Panel | Stainless steel COP with braille, wheelchair symbol, alarm & door open/close buttons |
| Ceiling | Downlight LED ceiling with ventilation panel |
| Safety Devices | Emergency intercom, automatic rescue device, light curtain, levelling protection |
| Power Supply | 380V / 50Hz, 3-phase |
| Noise Level | Low-noise design, quiet operation suitable for wards and clinics |
Size & Variations
Car platform and shaft dimensions are engineered to your building’s shaft conditions and patient-transport requirements. Available options include:
- Load options: 1000kg, 1600kg or custom sizes for oversized medical trolleys
- Car dimensions: extended-depth cabins for full-length hospital beds
- Finish options: hairline / mirror stainless steel, painted steel, antibacterial coating
- Flooring: marble, PVC medical flooring (easy-clean, anti-slip)
- Handrail: stainless steel IV handrail, removable type on request
- Door types: centre-opening or side-opening wide doors
- Optional: stretcher mode priority control, CCTV interface, fireman operation
Applications
Hospitals, clinics, medical centers, nursing homes, rehabilitation centers and healthcare facilities where beds, stretchers and wheelchairs must move smoothly between floors.
Get in Touch
Need a hospital elevator solution for your project? Send us your shaft dimensions and floor requirements — our engineering team will reply within 24 hours with a tailored layout drawing and quotation.
Shipping fee depends on your destination sea port. We will offer accordingly to your arrival port. Please contact us for further information.
12 months (Except force majeure, i.e. natural disaster, war, manual damage).
- 30% T/T in advance, 70% T/T 7 Days Before the Shipment.
Dur standard manufacture time s 25-30 days ater receving the depost As for non standard part, we ilnform you accordng to the real manufacture stuation. n al cases e wllt
to accommodate your needs.
Yes we wil provide relevant documents in Engish version incuding Certificates of Analysis, instalation guidebook electrical drawing, maintenance book.etc
Yes, Our minimum order quantity is one whole set elevator or escalator.
