Hydraulic Lifting Platform
- No machine room required – hydraulic drive unit installs beside the tower, saving building space and cost
- Shallow-pit or pit-free installation – works in existing buildings where a conventional elevator shaft is impossible
- Heavy load capacity from 500 kg up to 10 tons with double-cylinder or chain drive options
- Full-enclosed mesh hoistway or open twin-post configurations to match any site condition
- Interlocked landing doors, safety lock device and emergency lowering ensure personnel and cargo safety
- Powder-coated Q235B/Q355B steel structure – corrosion resistant, indoor and outdoor installation supported
The AITECH guide-rail hydraulic lifting platform is a vertical goods transportation solution designed for moving cargo between floors in factories, warehouses, workshops and logistics centers. Built on a heavy-duty steel guide-rail tower and driven by a hydraulic system, it delivers smooth, stable lifting with large platform capacity and a long service life. Compared with a traction freight elevator, it requires no machine room, needs only a shallow pit (or no pit at all), and offers a much lower cost for low-to-medium rise buildings. Every unit is engineered to your exact shaft size, lifting height and load requirement.
Key Components
Every critical component is selected and manufactured for continuous industrial duty:
- Pump station – one-piece molded steel pump station with reliable hydraulic power pack; long-term use without degradation
- Platform surface – one-piece checkered (patterned) steel plate, 3–5 mm thick, wear-resistant and non-slip
- Hydraulic cylinders – solid cylinders with multiple internal seals; each cylinder comes with a quality inspection certificate
- Plate lifting chain – multi-layer high-strength alloy steel plates riveted together; high tensile strength, no sudden failure
- Guide rails – high-strength rectangular tubing with excellent straightness and rigidity for smooth vertical travel
- Control system – PLC-based control with pre-wired, labeled harness; simple installation and easy troubleshooting
Installation Options
Three installation configurations are available to suit different building conditions:

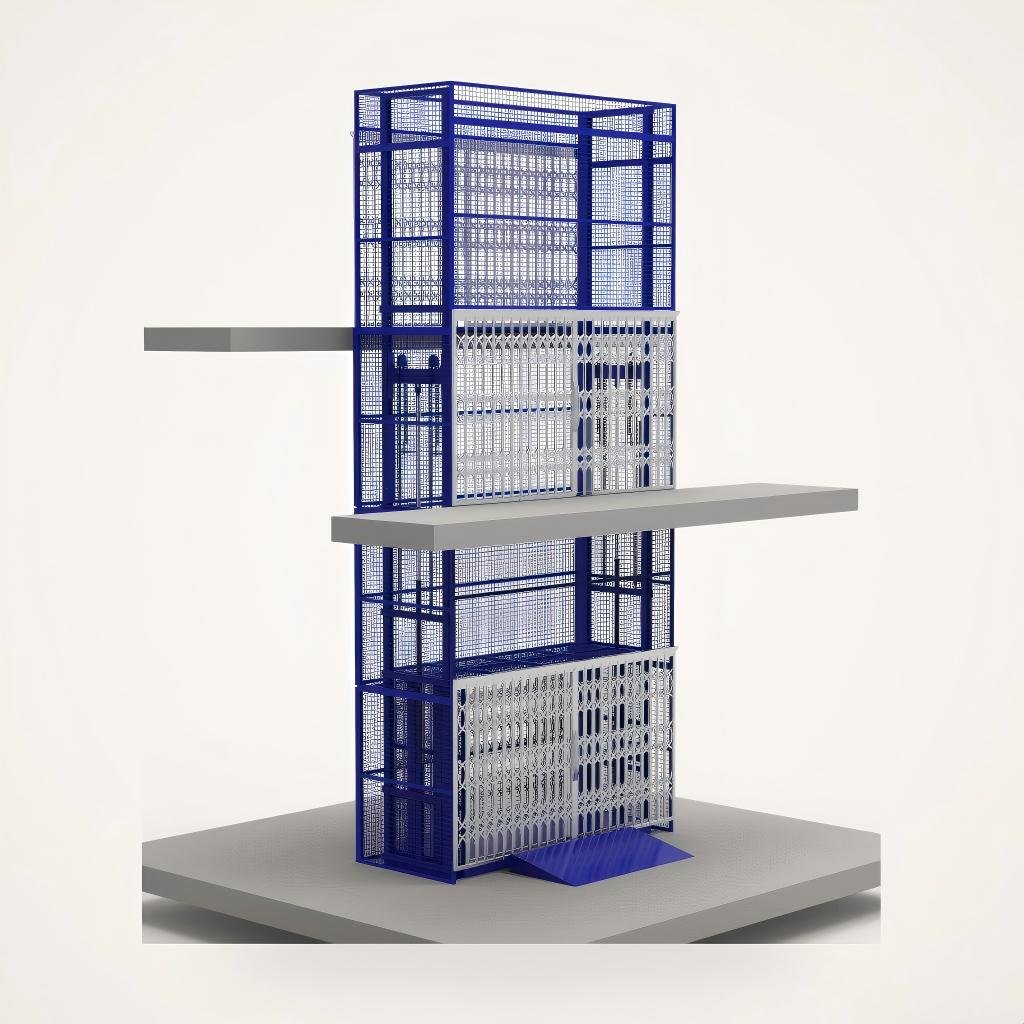

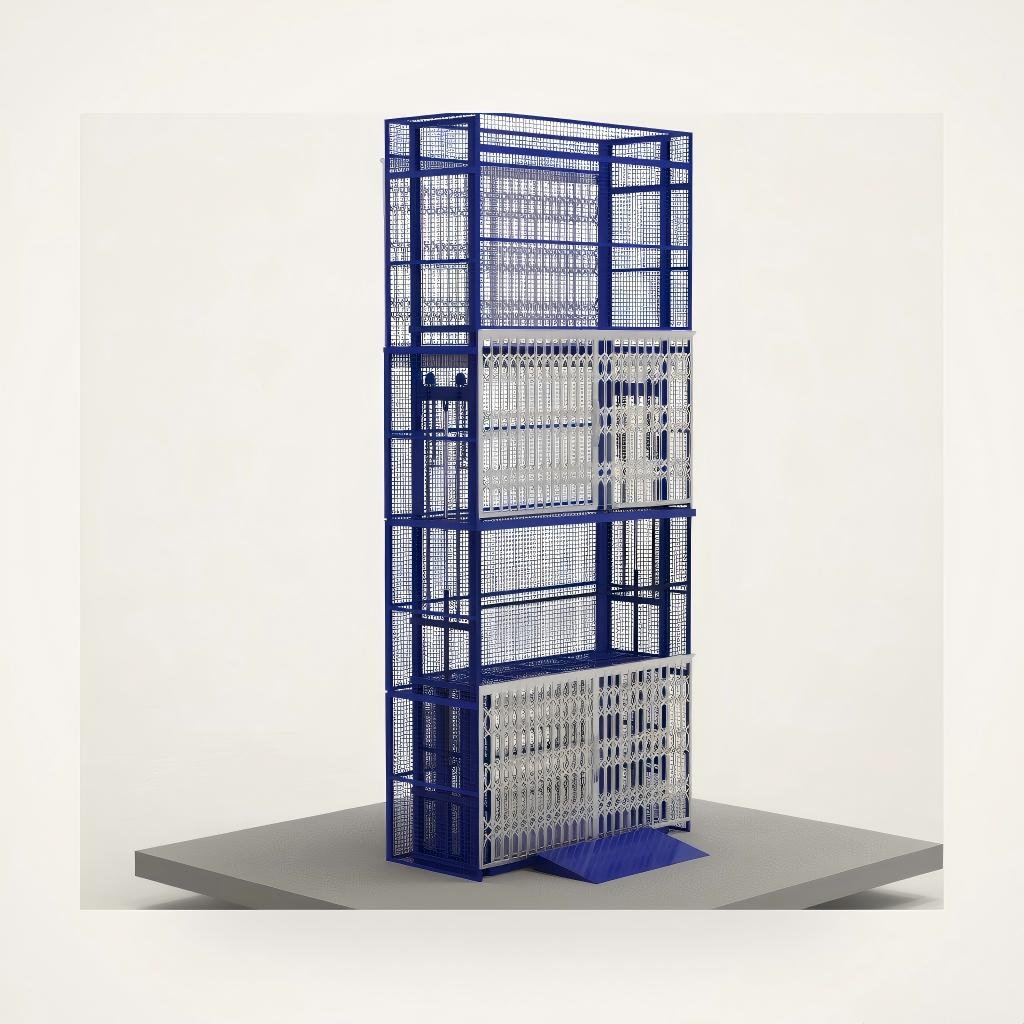

Full enclosed mesh hoistway with landing gates

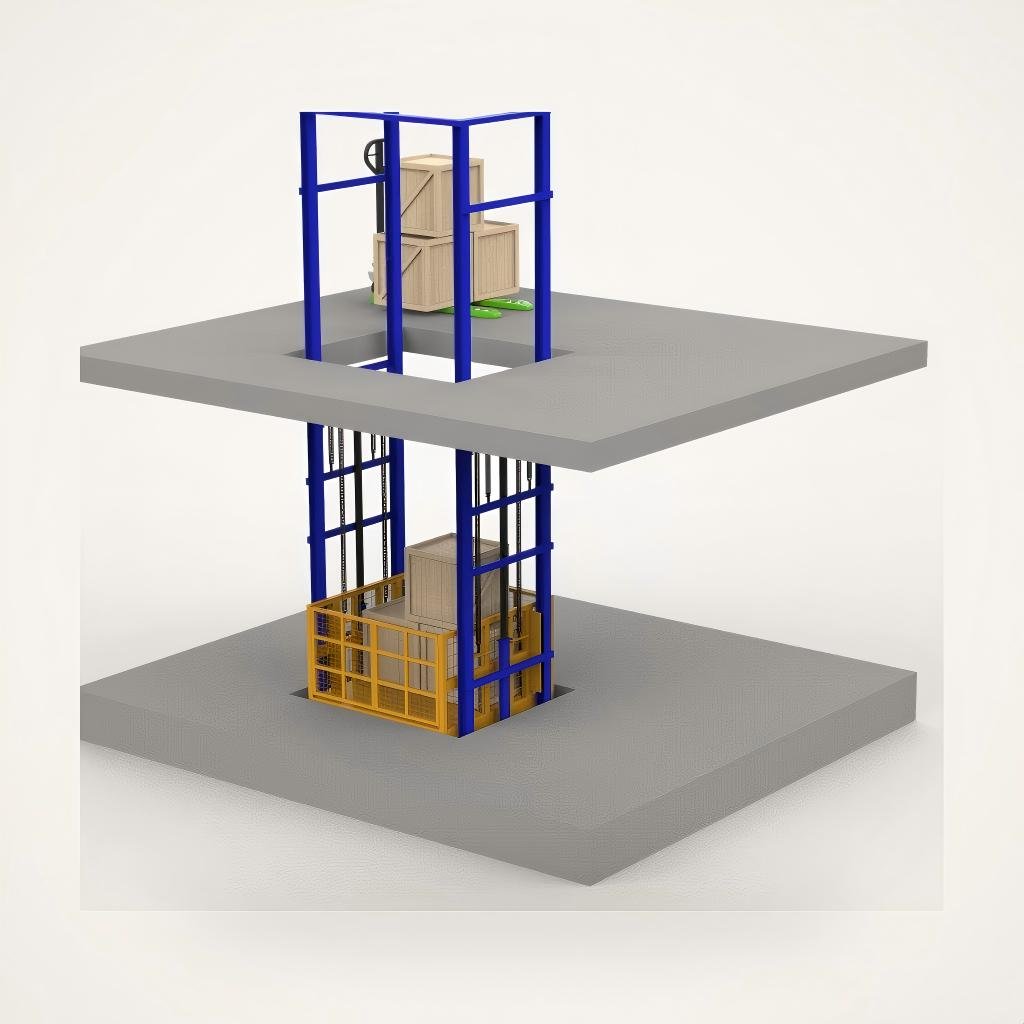

Through-floor installation – platform travels between two levels

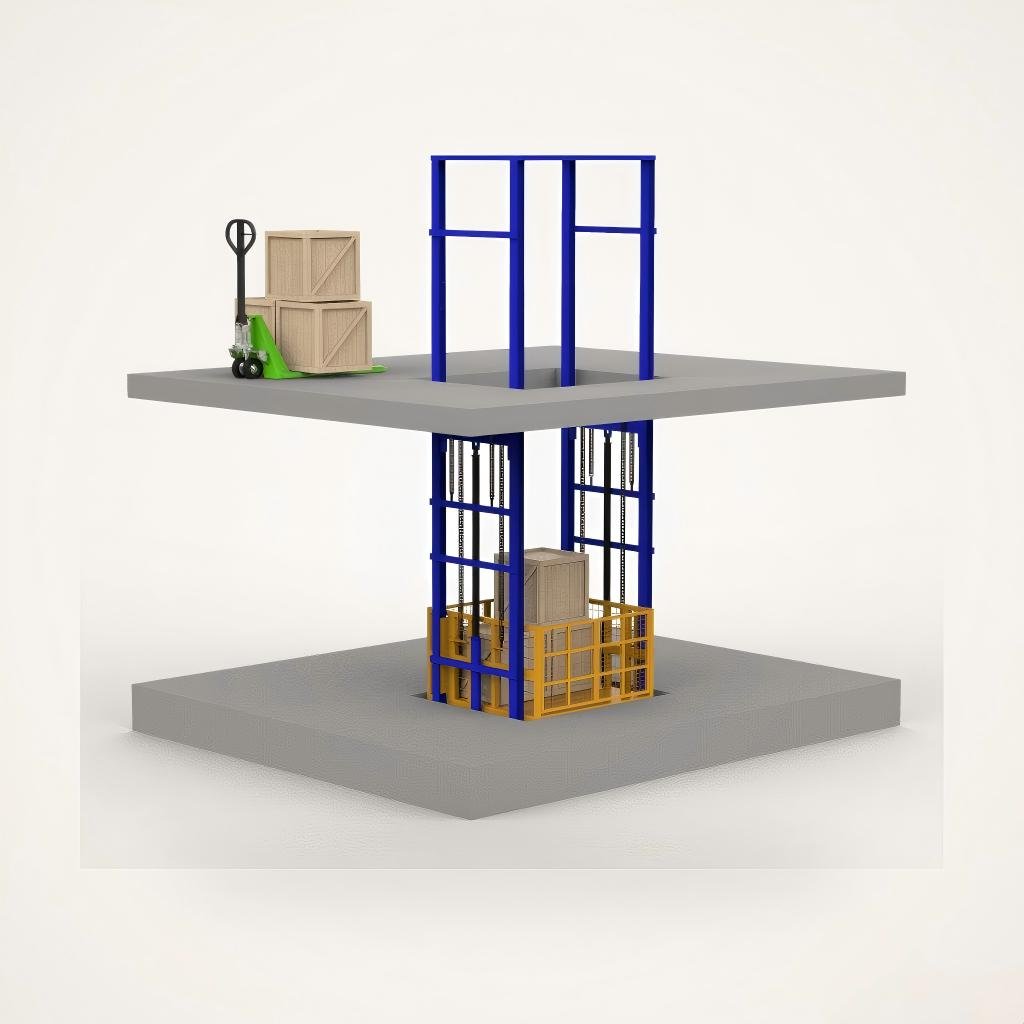

Floor-opening installation – pit-mounted platform flush with floor level

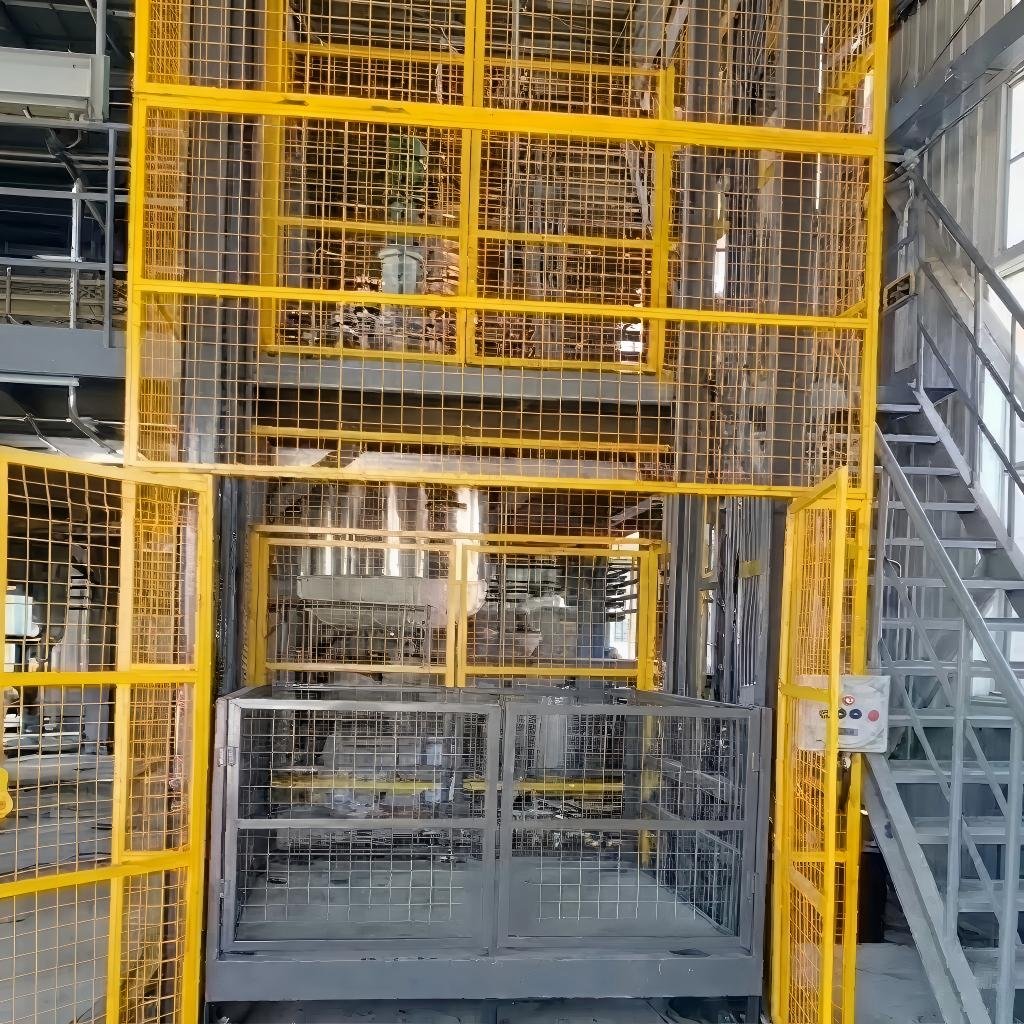

Factory installation reference

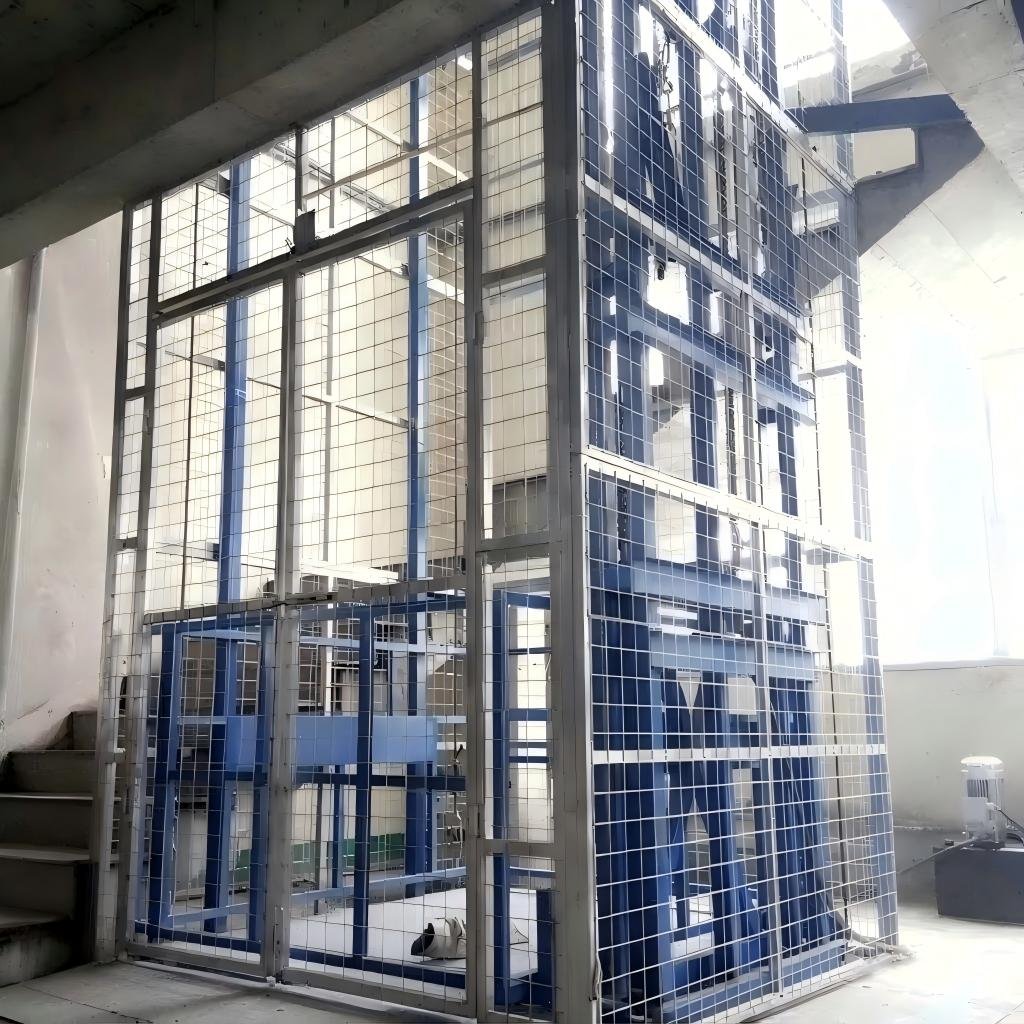

Warehouse installation reference
Section & Specifications
| Drive system | Hydraulic (cylinder + plate chain) |
| Load capacity | 500 kg – 10,000 kg (customized) |
| Lifting height | 3,000 – 10,000 mm (customized) |
| Platform size | 1,000×1,000 mm – 6,000×3,000 mm (customized) |
| Stops / floors served | 2 – 6 stops or customized |
| Guide rail material | Q235B / Q355B rectangular tubing, 100×100 – 160×80 mm |
| Hydraulic cylinders | 80/60 or 90/70 mm bore × 2 |
| Pump motor power | 2.2 – 5.5 kW |
| Lifting chain | 16A high-strength plate chain |
| Platform surface | 3 – 5 mm checkered steel plate |
| Guardrail height | 1,100 mm with safety mesh |
| Control system | PLC + relay control, emergency stop, limit switches |
| Input power | 220V / 380V / 415V, 3-phase, customizable |
| Installation | With or without pit; indoor or outdoor |
| Safety devices | Interlocked landing gates, safety lock, safety rope, emergency lowering, overload protection |
Note: Specifications above are typical configurations. Final parameters are confirmed according to your shaft dimensions, load and height requirements.
Applications
- Factory workshops – material transfer between production floors
- Warehouses & logistics centers – high-frequency goods handling
- Parcel sorting and e-commerce fulfillment centers
- Car parks, construction sites, malls and stations
Get in Touch
Send us your shaft size, lifting height and load requirement – our engineers will provide a tailored drawing and quotation within 24 hours. OEM & ODM supported.
