Commercial Dumbwaiter
- Food-grade stainless steel car – hygienic, easy to clean and odour-free, ideal for direct food contact
- Dual call/send control panels on each landing – one-button operation that any kitchen staff can master immediately
- Smooth, quiet VVVF or dual-speed drive – stable start and stop keeps soups and dishes from spilling
- Interlocked doors on every landing – the lift cannot be called or operated unless all doors are closed, preventing accidents

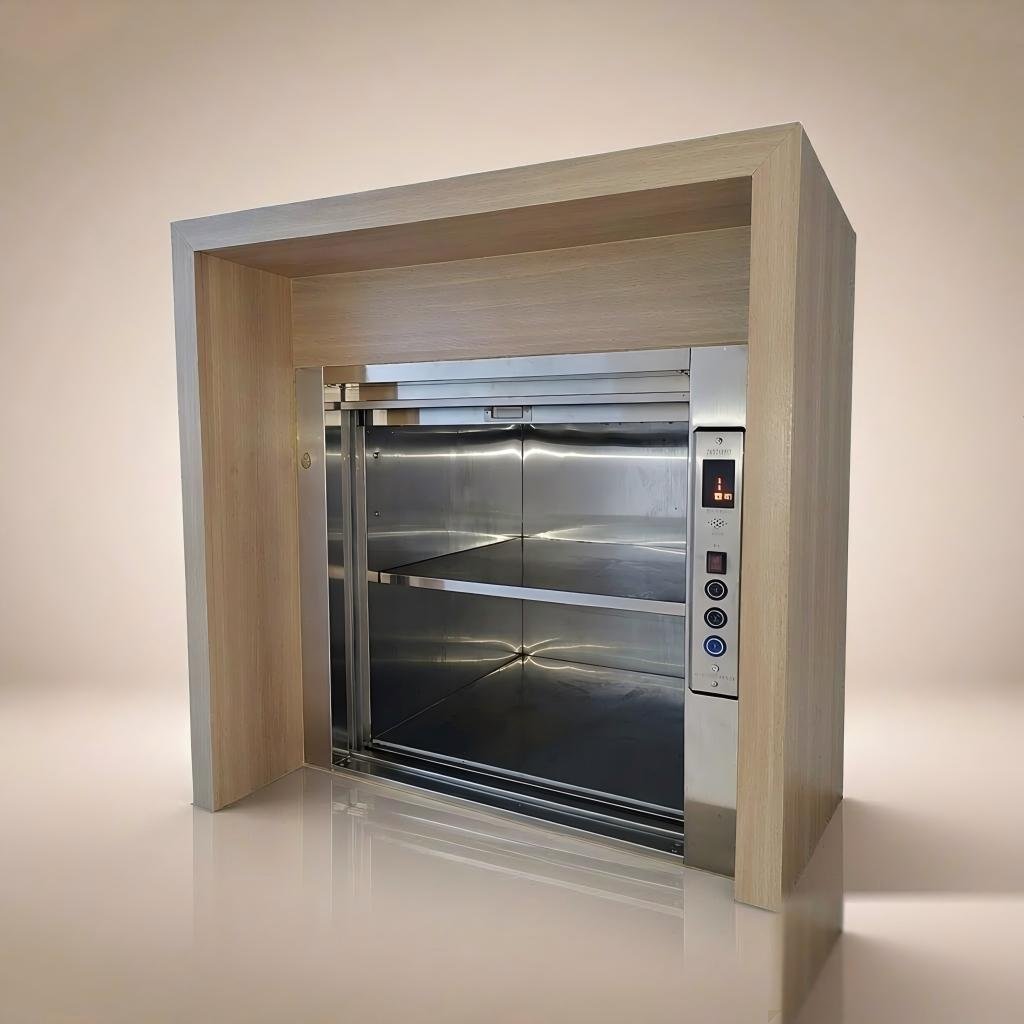

- Window-type and floor-type models – counter loading for tray service or full-height cabinet for trolleys and bulk goods
- Compact shaft requirement – fits into existing kitchens and service corridors with minimal building modification
Our commercial dumbwaiter (food/service lift) serves restaurants, cafeterias and hotels. It safely delivers food and tableware between floors.With stainless steel cabin, quiet traction system and simple controls, it reduces labor and improves service efficiency. Window-type and floor-type options are available to suit your kitchen layout.
Section & Specifications
| Model | On request (customized to your project) |
| Type | Window type (counter loading) / Floor type (full cabinet) |
| Rated Load | 100 kg / 200 kg / 300 kg / 500 kg |
| Rated Speed | 0.5 – 1.0 m/s |
| Stops / Openings | 2 – 8 stops, front or through-type arrangement |
| Car Finish | Hairline stainless steel (304 optional) |
| Car Shelves | 1 – 3 removable stainless steel shelves |
| Landing Doors | Stainless steel swing door or vertical bi-parting door |
| Control System | Microprocessor-based call/send control, full-collective optional |
| Drive | Geared traction machine with VVVF or two-speed control |
| Safety Devices | Door interlocks, overload protection, car light, emergency stop |
| Power Supply | 380V / 3-phase or 220V, customizable |
Real Installation Scenes

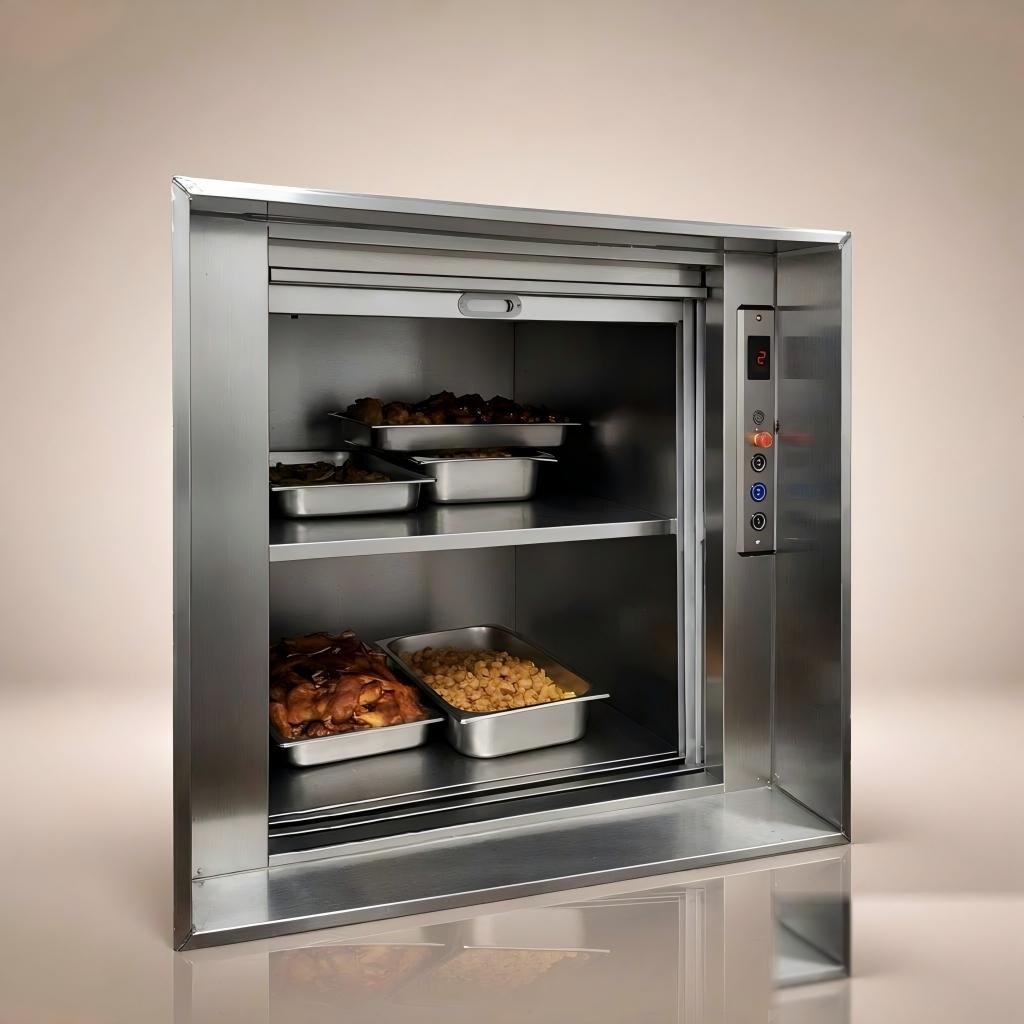

Window-type dumbwaiter loaded with food trays, ready to be sent to the dining floor

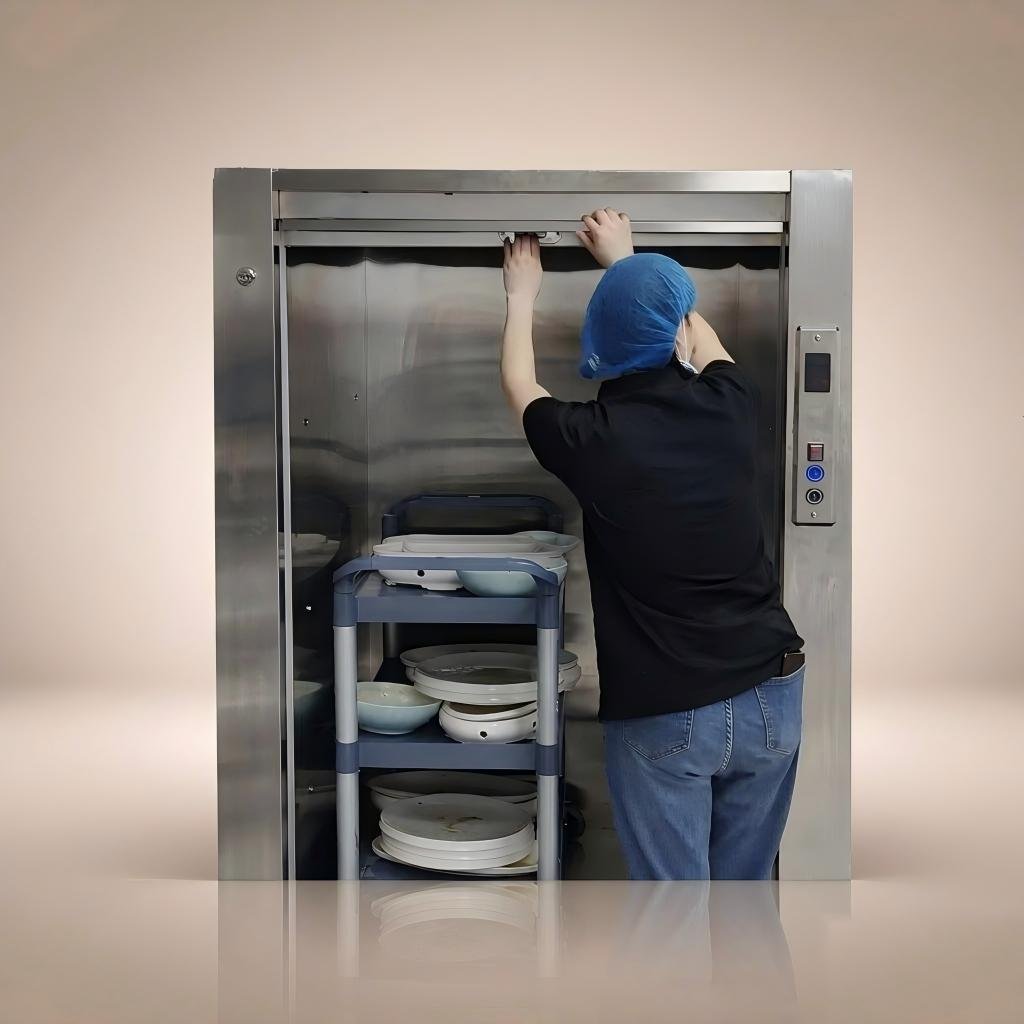

Kitchen staff loading a dish trolley into a floor-type dumbwaiter
Size & Variations
- Car sizes from 600 x 600 x 800 mm up to 1000 x 1000 x 1200 mm (customized to your kitchen plan)
- Load classes: 100 kg (food trays) / 200-300 kg (trolley service) / 500 kg (bulk goods)
- Door options: stainless steel swing door, vertical bi-parting (upward) door, or roller shutter
- Shelf options: 1-3 stainless steel shelves, removable and height-adjustable
- Cab finish: hairline or mirror stainless steel; painted steel available for budget projects
- Optional: voice announcer, photoelectric curtain, remote monitoring, floor indicator
Applications
Restaurants & hotels – central kitchens – cafeterias & canteens – clubs and banquet halls – villas & duplex residences – hospitals & nursing kitchens – banks and offices for document transport
Get in Touch
Tell us your shaft dimensions, number of floors and load requirement – our engineers will reply within 24 hours with a layout drawing and a competitive quotation.
Shipping fee depends on your destination sea port. We will offer accordingly to your arrival port. Please contact us for further information.
12 months (Except force majeure, i.e. natural disaster, war, manual damage).
- 30% T/T in advance, 70% T/T 7 Days Before the Shipment.
Dur standard manufacture time s 25-30 days ater receving the depost As for non standard part, we ilnform you accordng to the real manufacture stuation. n al cases e wllt
to accommodate your needs.
Yes we wil provide relevant documents in Engish version incuding Certificates of Analysis, instalation guidebook electrical drawing, maintenance book.etc
Yes, Our minimum order quantity is one whole set elevator or escalator.
