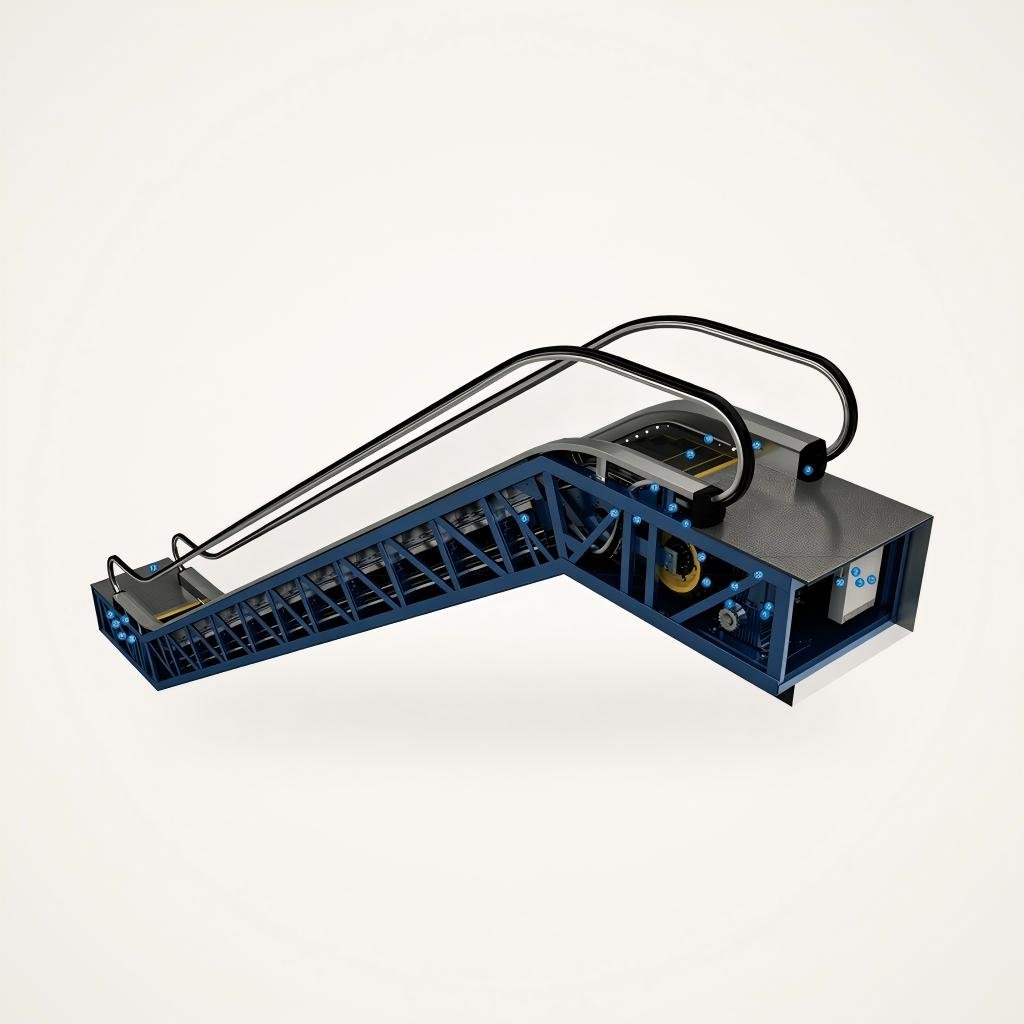

Commercial Escalator
- Humanized design – safety, aesthetics and ride comfort engineered into every detail
- Steady & safe operation – full set of standard safety devices for public-place traffic
- Energy-saving VVVF drive – automatically slows to economy speed when no passengers are detected (optional)
- Elegant appearance – glass or stainless steel balustrade options to match mall interiors
- Durable for high traffic – designed for continuous operation in shopping malls and transit hubs
- Indoor & outdoor versions – outdoor units with water-proof machine room and oil-water separator
AITECH commercial escalators have always insisted on the concept that humanization is the root of production and manufacture. We consider deeply various aspects of customers’ needs such as safety, aesthetics and performance, bringing customers a steady and safe feeling, letting them enjoy comfort and relaxation, and adding luster to magnificent business environments.
Section & Specifications
| Item | Specification |
| Model | On request (customized to your project) |
| Inclination | 30° (lift ≤ 6m) / 35° (lift ≤ 6m) / 27.3° for heavy-duty traffic |
| Rated Speed | 0.5 m/s / 0.65 m/s (typical commercial) |
| Step Width | 600 / 800 / 1000 mm |
| Horizontal Steps | 2 / 3 flat steps at landings |
| Drive | VVVF drive with energy-saving standby mode |
| Truss | Hot-dip galvanized / painted steel, integrated or split truss for long rises |
| Balustrade | Tempered glass (10mm) or hairline stainless steel |
| Handrail | Black rubber friction handrail, synchronization monitor |
| Steps | Die-cast aluminium steps with yellow plastic comb edge |
| Comb Plates | Safety comb plate with breakage detection |
| Operation | Constant speed or auto start/stop with passenger sensors |
| Power Supply | 380V / 50Hz, 3-phase |
Safety Devices
Standard safety device:
| 1. Lack of phase / error phase protection | 12. Emergency stop button | ||
| 2. Motor overload protection | 13. Skirt panel protection | ||
| 3. Electrical appliance loop protection | 14. Brake protection | ||
| 4. Handrail entrance protection | 15. Safety inspection switch | ||
| 5. Comb plate safety device | 16. Step illumination | ||
| 6. Step sagging protection device | 17. Landing plate contact | ||
| 7. Broken drive-chain safety device | 18. Handrail speed monitor | ||
| 8. Broken step chain protection | 19. Skirt panel brush | ||
| 9. Over-speed protection | 20. Braking distance inspection | ||
| 10. Direction reversal protection | 21. Step missing detection | ||
| 11. Security line |
| 22. | Alarm bell starting device |
| 23. | Handrail broken protection |
| 24. | Lower machine-room water level detection (outdoor escalator) |
| 25. | Auxiliary brake (to be allocated with the emergency brake when lift > 6m) |
| 26. | Oil-water separator (outdoor escalator) |
Part 2 · Commercial Moving Walkway
Overview
AITECH commercial moving walkways adopt a number of world-advanced energy-saving technologies, are designed with modern innovation and produced in strict conformance with safety standards, to solve frequent passenger flow in public places such as shopping malls, shopping centers and airports. The commercial moving walkways are developed for long-distance delivery of people and goods, bringing people convenient trips as well as rapid and joyful feelings.
Commercial moving walkway – glass balustrade, flat pallet deck
Key Features & Benefits
- Long-distance transport – flat and inclined types carry passengers and trolleys over long distances
- World-advanced energy-saving technology – VVVF drive with standby speed reduction
- Strict safety compliance – designed and produced in conformance with international safety standards
- High passenger capacity – solves frequent passenger flow in malls, centers and airports
- Comfortable & quiet – precise track system for smooth, low-noise riding
- Flexible installation – 0° flat, 10°/12° inclined versions, shallow-pit design available
Section & Specifications
| Item | Specification |
| Model | On request (customized to your project) |
| Type | Flat (0°) / Inclined (10°–12°) |
| Rated Speed | 0.5 m/s / 0.65 m/s / 0.75 m/s |
| Pallet Width | 800 / 1000 / 1400 mm |
| Run Length | Engineered to project requirements (long-distance capable) |
| Drive | VVVF drive, energy-saving standby mode |
| Truss | Hot-dip galvanized / painted steel |
| Balustrade | Tempered glass (10mm) or stainless steel |
| Handrail | Black rubber handrail with speed monitor |
| Pallets | Die-cast aluminium pallets with yellow safety edges |
| Landing | Brushed stainless steel landing plates with comb plates |
| Power Supply | 380V / 50Hz, 3-phase |
Safety Devices
Equipped with the same full set of standard safety devices as the escalator series (item 1–21 above), including handrail entrance protection, pallet sagging detection, comb plate safety device, over-speed and direction reversal protection, and emergency stop buttons at both landings.
Applications
Shopping malls, shopping centers, supermarkets, airports, railway and metro stations, exhibition centers, hotels and other public buildings with heavy passenger flow.
Get in Touch
Send us your rise, inclination and site conditions — our engineering team will reply within 24 hours with a tailored layout drawing and quotation.
Shipping fee depends on your destination sea port. We will offer accordingly to your arrival port. Please contact us for further information.
12 months (Except force majeure, i.e. natural disaster, war, manual damage).
- 30% T/T in advance, 70% T/T 7 Days Before the Shipment.
Dur standard manufacture time s 25-30 days ater receving the depost As for non standard part, we ilnform you accordng to the real manufacture stuation. n al cases e wllt
to accommodate your needs.
Yes we wil provide relevant documents in Engish version incuding Certificates of Analysis, instalation guidebook electrical drawing, maintenance book.etc
Yes, Our minimum order quantity is one whole set elevator or escalator.
