05(Contemporary Mirror)
- Mirror stainless steel ceiling with acrylic LED light panel
- Full black-titanium mirror walls create a bold, modern mood
- Hairline stainless steel handrail keeps the look restrained
- Mirror surfaces make compact cabins feel more spacious
- Durable finish designed for high-frequency daily use
- Works well with both light and dark floor finishes

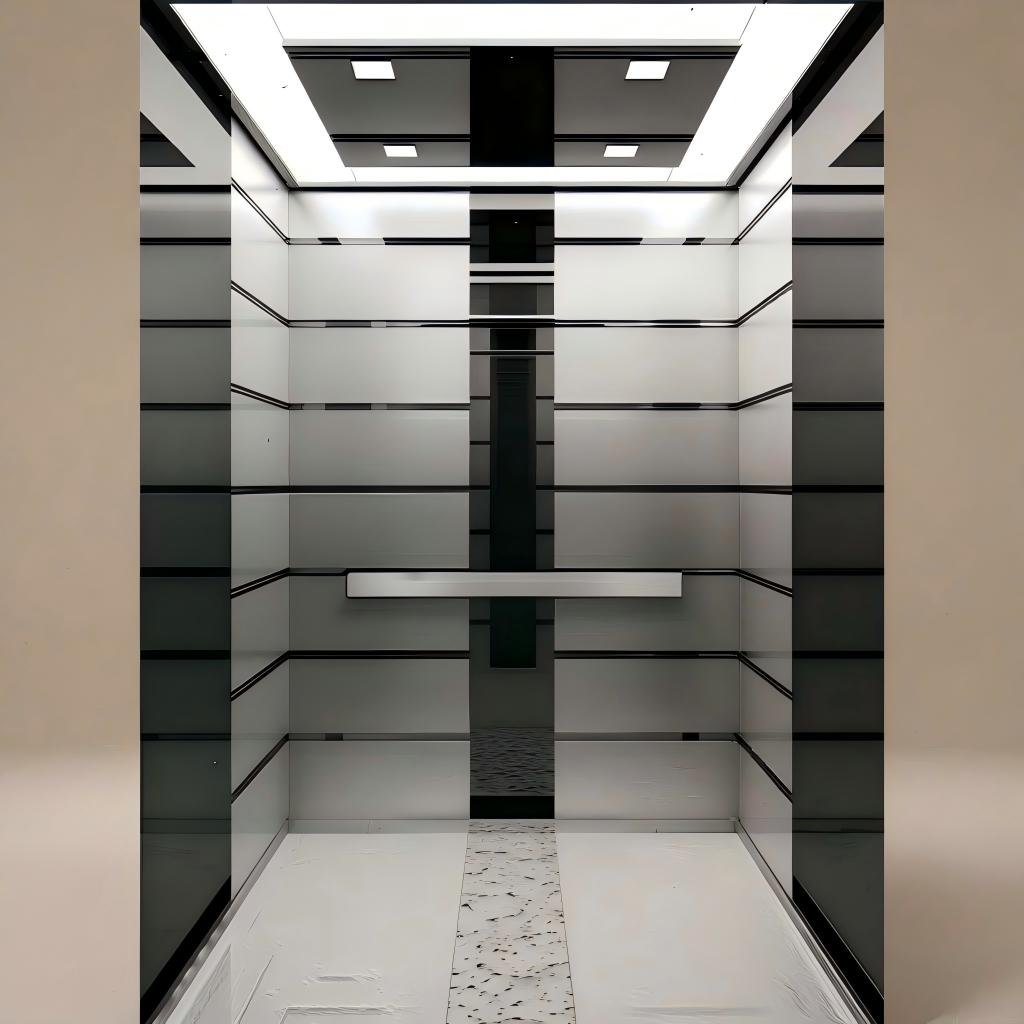

A glossy mirror ceiling with acrylic LED light and full black-titanium mirror walls. A modern, youthful cabin for upscale retail spaces, serviced apartments and designer residences.
Section & Specifications
| Model | 05(Contemporary Mirror) |
| Rated Load | 400 kg – 1600 kg (5 – 21 persons), other capacities on request |
| Rated Speed | 1.0 m/s – 1.75 m/s (up to 2.5 m/s for high-rise projects) |
| Cabin | Black titanium mirror stainless steel |
| Ceiling | Mirror stainless steel + acrylic LED light |
| Handrail | Hairline stainless steel |
| Floor | Marble or PVC |
| Door | Center opening, stainless steel; optional glass landing doors |
| Control System | Simplex full collective / group control with intelligent dispatching |
| Drive System | VVVF gearless traction, energy-saving and low noise |
| Power Supply | 380 V / 50 Hz three-phase (220 V / 60 Hz optional) |
| Safety | Emergency release, intercom, over-speed governor, buffer, light curtain door protector |
Size & Variations
Each cabin option is available in a wide range of sizes and finishes. Below are the most requested variations – if you need something specific, just tell us the shaft size and we will propose a matching layout.
- Load capacity: 400 kg – 1600 kg (5 – 21 persons)
- Cabin size: customized according to your shaft dimensions
- Finish colors: Silver, Golden, Bronze, Black Titanium, Rose Gold, Champagne Gold
Applications
Residential buildings and apartments / Hotels, serviced apartments and boutique guesthouses / Office buildings and business centers / Shopping malls and mixed-use complexes / Hospitals and public buildings (stretchers on request)
Get in Touch
Looking for a specific cabin size, finish or landing door design? Send us your shaft dimensions and project requirements – our engineers will reply with a proposal and quotation within 24 hours.
Shipping fee depends on your destination sea port. We will offer accordingly to your arrival port. Please contact us for further information.
12 months (Except force majeure, i.e. natural disaster, war, manual damage).
- 30% T/T in advance, 70% T/T 7 Days Before the Shipment.
Dur standard manufacture time s 25-30 days ater receving the depost As for non standard part, we ilnform you accordng to the real manufacture stuation. n al cases e wllt
to accommodate your needs.
Yes we wil provide relevant documents in Engish version incuding Certificates of Analysis, instalation guidebook electrical drawing, maintenance book.etc
Yes, Our minimum order quantity is one whole set elevator or escalator.
