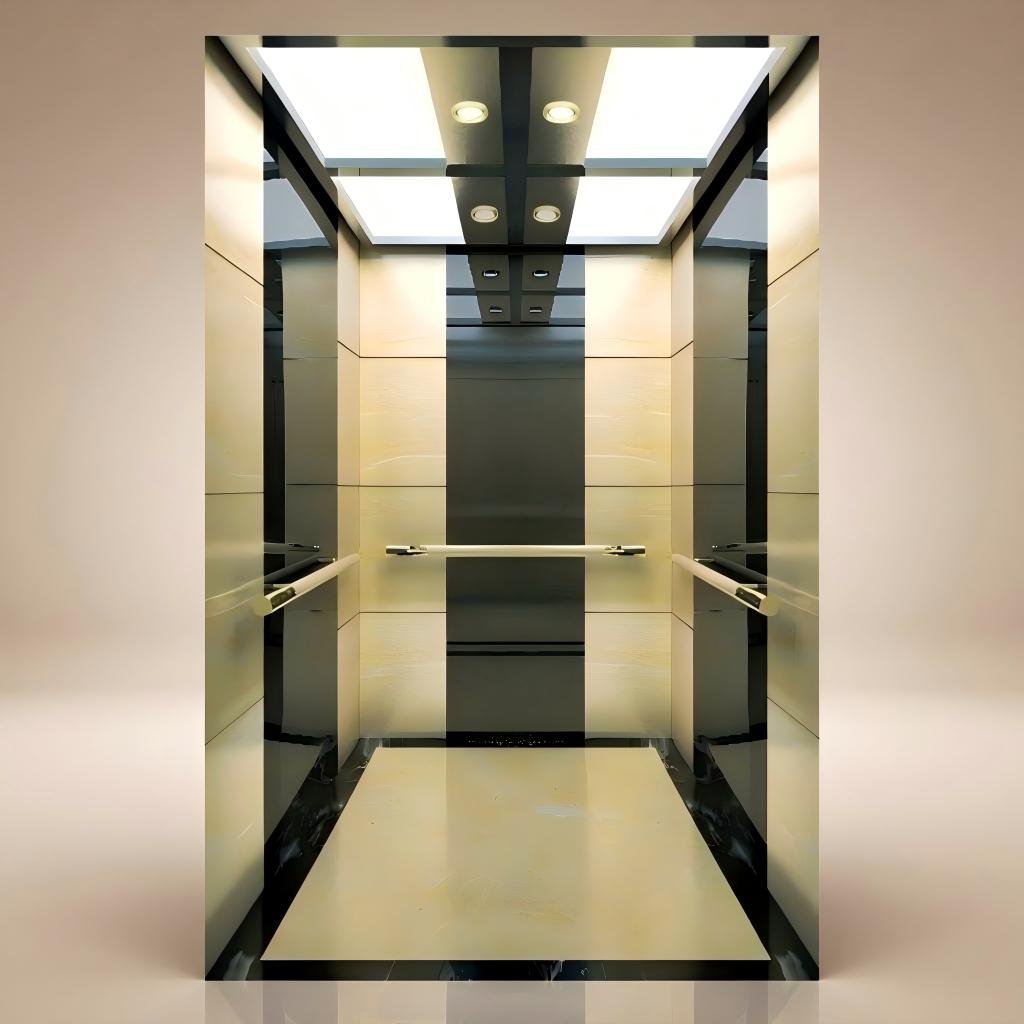

04(Classic Marble)
- Mirror stainless steel center walls visually enlarge the cabin
- Marble-facing side panels deliver a classical, elegant tone
- Acrylic light panels on both sides ensure even illumination
- Titanium stainless steel handrail ends with central round handrail
- Balanced, symmetrical design suits formal building interiors
- Marble pattern and tone can be matched to the lobby floor
A symmetrical layout with mirror stainless steel in the center and marble-facing side walls, finished with titanium end caps and a central round handrail. A dignified choice for hotel lobbies, office towers and premium apartments.
Section & Specifications
| Model | 04(Classic Marble) |
| Rated Load | 400 kg – 1600 kg (5 – 21 persons), other capacities on request |
| Rated Speed | 1.0 m/s – 1.75 m/s (up to 2.5 m/s for high-rise projects) |
| Cabin | Mirror stainless steel centre + marble facing on both sides |
| Ceiling | Mirror stainless steel with centre down lamp + acrylic light panels on both sides |
| Handrail | Titanium stainless steel ends + stainless steel round handrail in the middle |
| Floor | PVC / Marble (optional) |
| Door | Center opening, stainless steel; optional glass landing doors |
| Control System | Simplex full collective / group control with intelligent dispatching |
| Drive System | VVVF gearless traction, energy-saving and low noise |
| Power Supply | 380 V / 50 Hz three-phase (220 V / 60 Hz optional) |
| Safety | Emergency release, intercom, over-speed governor, buffer, light curtain door protector |
Size & Variations
Each cabin option is available in a wide range of sizes and finishes. Below are the most requested variations – if you need something specific, just tell us the shaft size and we will propose a matching layout.
- Load capacity: 400 kg – 1600 kg (5 – 21 persons)
- Cabin size: customized according to your shaft dimensions
- Finish colors: Silver, Golden, Bronze, Black Titanium, Rose Gold, Champagne Gold
Applications
Residential buildings and apartments / Hotels, serviced apartments and boutique guesthouses / Office buildings and business centers / Shopping malls and mixed-use complexes / Hospitals and public buildings (stretchers on request)
Get in Touch
Looking for a specific cabin size, finish or landing door design? Send us your shaft dimensions and project requirements – our engineers will reply with a proposal and quotation within 24 hours.
Shipping fee depends on your destination sea port. We will offer accordingly to your arrival port. Please contact us for further information.
12 months (Except force majeure, i.e. natural disaster, war, manual damage).
- 30% T/T in advance, 70% T/T 7 Days Before the Shipment.
Dur standard manufacture time s 25-30 days ater receving the depost As for non standard part, we ilnform you accordng to the real manufacture stuation. n al cases e wllt
to accommodate your needs.
Yes we wil provide relevant documents in Engish version incuding Certificates of Analysis, instalation guidebook electrical drawing, maintenance book.etc
Yes, Our minimum order quantity is one whole set elevator or escalator.
