Panoramic Elevator – Golden Frame Square
- Yellow titanium gold mirror stainless steel upper and lower guards
- Detached transparent laminated safety glass observation walls
- Mirror stainless steel decoration roof with acrylic lighting
- Laminated safety glass car walls for a fully open view
- Stainless steel round tube handrail, comfortable grip
- Bright, spacious feel ideal for daylight shafts and atriums

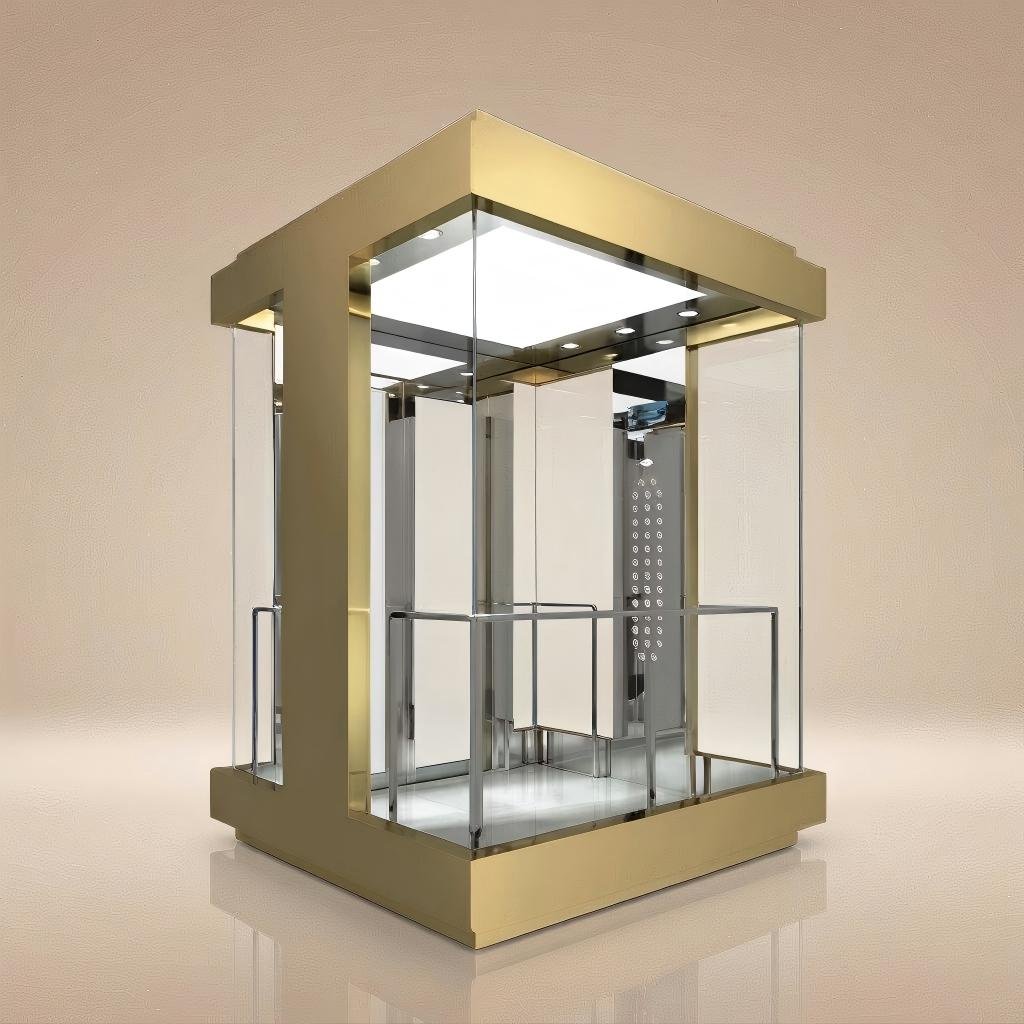

A square panoramic cabin framed in yellow-titanium mirror stainless steel with fully transparent laminated glass walls. The open, light-filled interior makes it a natural centre piece for hotels, offices and premium retail spaces.
Section & Specifications
| Upper & Lower Guard | Yellow titanium gold mirror stainless steel |
| Observation Wall | Detached transparent laminated safety glass |
| Decoration Roof | Mirror stainless steel + acrylic lighting decoration |
| Car Wall | Laminated safety glass |
| Handrail | Stainless steel round tube |
| Floor | PVC |
| Model | On request (customized to your project) |
| Rated Load | 450 kg – 1000 kg (6 – 13 persons), other capacities on request |
| Rated Speed | 1.0 m/s – 1.75 m/s |
| Door | Center opening, stainless steel; glass landing doors available |
| Control System | Simplex full collective / group control with intelligent dispatching |
| Drive System | VVVF gearless traction, energy-saving and low noise |
| Power Supply | 380 V / 50 Hz three-phase (220 V / 60 Hz optional) |
| Safety | Emergency release, intercom, over-speed governor, buffer, light curtain door protector |
Size & Variations
Each panoramic model can be tailored to your building. Below are the most requested variations – send us your shaft dimensions and we will propose a matching layout.
- Load capacity: 450 kg / 630 kg / 800 kg / 1000 kg / 1150 kg (6 – 15 persons)
- Cabin shape: octagonal, square or circular, sized to your shaft
- Glass options: clear, tinted or reflective laminated safety glass
- Frame & guard finishes: silver, golden, bronze, black titanium, rose gold, champagne gold
- Ceiling: acrylic light panel, LED downlight, hidden light band, chimney light column
- Floor: PVC or natural / engineered marble
- Machine-room-less (MRL) or machine-room layouts available
Applications
Shopping malls and atriums / Hotels and resort lobbies / Office towers and showrooms / Museums, exhibition halls and landmarks / External shafts on building facades / Scenic spots and observation decks
Get in Touch
Tell us your shaft dimensions, glass preference and finish color – our engineers will reply with a layout drawing and quotation within 24 hours.
Shipping fee depends on your destination sea port. We will offer accordingly to your arrival port. Please contact us for further information.
12 months (Except force majeure, i.e. natural disaster, war, manual damage).
- 30% T/T in advance, 70% T/T 7 Days Before the Shipment.
Dur standard manufacture time s 25-30 days ater receving the depost As for non standard part, we ilnform you accordng to the real manufacture stuation. n al cases e wllt
to accommodate your needs.
Yes we wil provide relevant documents in Engish version incuding Certificates of Analysis, instalation guidebook electrical drawing, maintenance book.etc
Yes, Our minimum order quantity is one whole set elevator or escalator.
